E-type quick connector is a circular arc connector stuck in the female head, and the other end is a hose connector with a bamboo joint shape. This structure makes it easy to connect to the corresponding piping system.
Procurement Guidelines
- All stock items are available for retail; once the order is confirmed, customs clearance and shipping take about one week.
- As the original manufacturer with large-scale one-stop production, the quality of aluminum plate matches market standards and costs 10% less.
- A trusted brand that undergoes rigorous quality checks, ensuring no concerns about product quality.

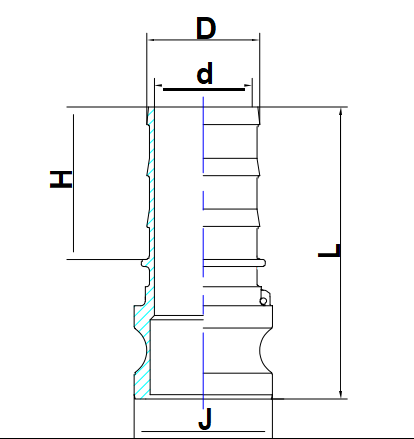

E-type quick connector size
Inventory information is being updated in real-time, Welcome to click on the button to obtain the latest inventory information and lowest quotation….
| specifications | G | nD | nd | L | H | J |
|---|---|---|---|---|---|---|
| 150 | 6 | 154 | 144 | 210 | 136 | 175 |
| 125 | 5 | 130 | 119.5 | 183 | 112 | 144.5 |
| 100 | 4 | 102.5 | 93 | 163 | 92.5 | 119 |
| 80 | 3 | 76.5 | 67 | 155 | 87 | 91 |
| 65 | 2-1/2 | 63.5 | 56 | 139.5 | 74 | 76 |
| 50 | 2 | 51.5 | 44.5 | 133 | 69.5 | 63 |
| 40 | 1-1/2 | 38.5 | 32 | 120.5 | 64.5 | 53 |
| 32 | 1-1/4 | 32.5 | 25 | 114 | 58.5 | 45.5 |
| 25 | 1 | 25.4 | 19 | 100 | 50.5 | 36.5 |
| 20 | 3/4 | 19.5 | 14.5 | 84.5 | 42.5 | 32.5 |
| 15 | 1/2 | 14 | 8.5 | 74 | 37 | 24 |
If the above inventory does not have the specifications you need, you can directly contact us for customization or check the specific production capabilities below.
E-type quick connector application area :
- Petrochemical industry: Railway and highway oil loading and unloading: The E-type quick connector is a specialized equipment for loading and unloading fluids on railway tank trucks and highway oil tank trucks.
- Mine ventilation system: Metal hose ventilation joints in mining areas: E-type quick connectors can be used in conjunction with metal hose ventilation joints in mining areas, providing efficient and safe ventilation solutions.
- Emergency disassembly and assembly of pipelines: urgent need for frequent disassembly and assembly of pipelines: E-type quick connectors have the characteristics of quick connection, flexible and labor-saving disassembly, and are particularly suitable for urgent and frequent disassembly and assembly of pipelines.
Quick connector material
E-type quick connectors usually use 304 or 316 stainless steel as the main material. These two types of stainless steel materials are widely used in various industrial fields due to their excellent corrosion resistance and mechanical properties.
- 304 stainless steel: has good corrosion resistance, especially in atmospheric, water, and general chemical media. It also has good processability and weldability.
- 316 stainless steel: With the addition of element on the basis of 304 stainless steel, it has stronger corrosion resistance, especially in chloride environments.
