DP quick connectors belong to a type of quick connector, which specifically refers to those designed in the form of male connectors. Because it is in the form of a plug, it can also be called a quick plug. When connecting, one end is directly connected to the other female end with pull ears, while the other end is blocked.
Procurement Guidelines
- All stock items are available for retail; once the order is confirmed, customs clearance and shipping take about one week.
- As the original manufacturer with large-scale one-stop production, the quality of aluminum plate matches market standards and costs 10% less.
- A trusted brand that undergoes rigorous quality checks, ensuring no concerns about product quality.
If you need bulk procurement or customized orders, Kaysun can provide standard sizes to meet your needs. Welcome to visit.

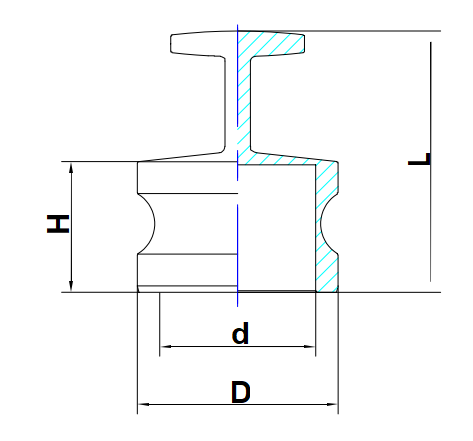

DP type quick connector size
Inventory information is being updated in real-time, Welcome to click on the button to obtain the latest inventory information and lowest quotation….
| specifications | G | nD | nd | L | H |
|---|---|---|---|---|---|
| 150 | 6 | ||||
| 125 | 5 | ||||
| 100 | 4 | 119 | 103 | 88 | 46 |
| 80 | 3 | 91 | 76 | 88 | 46 |
| 65 | 2-1/2 | 76 | 59.5 | 84 | 43 |
| 50 | 2 | 63 | 49 | 82 | 41 |
| 40 | 1-1/2 | 53 | 38.5 | 75.5 | 37 |
| 32 | 1-1/4 | 45.5 | 31 | 68 | 37 |
| 25 | 1 | 36.5 | 25.5 | 58 | 30.5 |
| 20 | 3/4 | 32.5 | 21 | 52 | 27 |
| 15 | 1/2 | 24 | 14.5 | 49.5 | 26 |
If the above inventory does not have the specifications you need, you can directly contact us for customization or check the specific production capabilities below.
BP type quick connector application area :
- Automotive industry: connecting brake systems, fuel supply systems, cooling systems, etc. to ensure vehicle safety and stability.The petroleum and chemical industry: connecting pipelines and circuits related to high temperature, high pressure, and corrosive media.
- Food and Beverage Industry: Connect water pipes, gas supply pipes, etc. to ensure the hygiene and safety of food and beverages, and the materials must meet food grade standards.
- Medical industry: The materials used to connect medical equipment such as infusion tubes and ventilator pipes must meet medical grade standards.
- Electronics industry: Connect power lines, signal lines, etc. to ensure the stability and safety of electronic equipment. Materials must have characteristics such as high temperature resistance, corrosion resistance, and insulation.
Quick connector material
DP quick connectors are mainly made of different materials to meet different working environments and application needs.
- Stainless steel is one of the commonly used materials for DP quick connectors. Stainless steel has characteristics such as acid and alkali resistance, corrosion resistance, etc., and is suitable for industrial fields that require high working environments.
- The stainless steel quick connector has a smooth and beautiful surface, long service life, and is widely used in fields such as medicine, food, and chemical industry.
- The specific stainless steel materials include 201, 304, and 316, which have different corrosion resistance properties and can be selected according to specific needs.
