One end of the A-type quick connector is a circular arc connector stuck in the female head, and the other end is a threaded connection with internal threads. This design allows the A-type joint to easily fit with the female head, achieving quick connection and disconnection
Procurement Guidelines
- All stock items are available for retail; once the order is confirmed, customs clearance and shipping take about one week.
- As the original manufacturer with large-scale one-stop production, the quality of aluminum plate matches market standards and costs 10% less.
- A trusted brand that undergoes rigorous quality checks, ensuring no concerns about product quality.

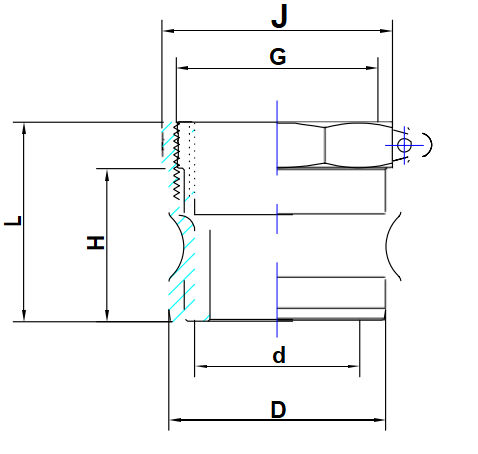

A-type quick connector size
Inventory information is being updated in real-time, Welcome to click on the button to obtain the latest inventory information and lowest quotation….
| specifications | G | nD | nd | L | H | J |
|---|---|---|---|---|---|---|
| 150 | 6 | 175 | 158 | 72.5 | 53 | 177.5 |
| 125 | 5 | 145 | 127 | 72 | 52 | 151 |
| 100 | 4 | 119 | 103 | 69 | 50 | 121 |
| 80 | 3 | 91 | 76.5 | 66 | 50.5 | 94.5 |
| 65 | 2-1/2 | 76 | 60 | 69 | 67 | 82 |
| 50 | 2 | 63 | 48 | 58 | 44.5 | 67 |
| 40 | 1-1/2 | 53 | 38 | 52 | 40 | 54.5 |
| 32 | 1-1/4 | 45.5 | 30.5 | 52 | 40 | 47.5 |
| 25 | 1 | 36.5 | 25.5 | 44.5 | 32.5 | 38.5 |
| 20 | 3/4 | 32.5 | 21 | 38 | 27 | 33 |
| 15 | 1/2 | 24 | 14 | 36.5 | 27 | 26 |
If the above inventory does not have the specifications you need, you can directly contact us for customization or check the specific production capabilities below.
A-type quick connector application area :
The application fields are very extensive, mainly reflected in the following aspects:
- Industrial production line: widely used in industrial production lines, such as automotive manufacturing, mechanical processing, etc. It can quickly connect and disconnect various pipelines and equipment, greatly improving production efficiency.
- Liquid conveying system: In a liquid conveying system, Type are commonly used for oil pipe connections, water pipe connections, etc. Its design ensures fast and reliable connection of different medium pipelines, ensuring smooth liquid transportation.
- Chemical production line: In the chemical production line, Type are widely used in the transportation and transfer of chemicals. It can connect different types of pipelines and containers to ensure the safe transmission of chemicals.
Quick connector material
- One of the most commonly used materials for A-type quick connectors, especially 304 and 316 stainless steel. These stainless steel materials have good corrosion resistance and mechanical properties, making them suitable for various complex and harsh working environments.
- Copper alloys are also commonly used in the manufacturing of A-type quick connectors due to their excellent conductivity, thermal conductivity, and corrosion resistance.
